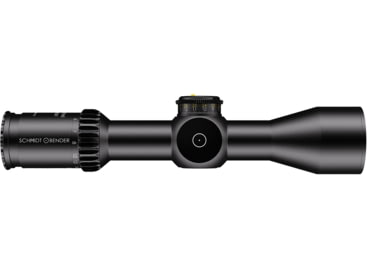

Schmidt & Bender 5-20x50 PM II Ultra Short Rifle Scope, 34 mm Tube, First Focal Plane
Schmidt & Bender 5-20x50 PM II Ultra Short Rifle Scope, 34 mm Tube, First Focal Plane
The 5-20x50 PM II Ultra Short represents Schmidt & Benders shortest full featured riflescope and is perfect for medium and long-range targets. Our newly designed illumination control is integrated into the parallax adjustment and allows a better mounting solution also for left handed use. The redesigned magnification ring offers now more grip and can accommodate the Throw Lever. The low-profile elevation turret with 27 MRAD or large 35 MRAD adjustment range can easily be combined with a red dot sight for close distances. Compact rifles with limited rail space are especially predestined for this compact powerhouse. Although being short, lightweight and compact: this riflescope doesnt compromise a millimeter on mechanical reliability or optical performance.
Specifications for Schmidt & Bender 5-20x50 PM II Ultra Short Rifle Scope, 34 mm Tube, First Focal Plane:
| Manufacturer: | Schmidt & Bender |
| Objective Lens Diameter: | 50 mm |
| Magnification: | 5 - 20 x |
| Tube Diameter: | 34 mm |
| Reticle Focal Plane: | First Focal Plane (FFP) |
| Exit Pupil: | 2.5 - 10 mm |
| Field of View, Linear: | 2 - 7.8 m at 100 m |
| Eye Relief: | 90 mm |
| Diopter Adjustment Range: | -3 - 2 dpt |
| Weight: | 870 - 930 g |
| Adjustment Click Value: | 1 cm at 100 m |
| Length: | 299 mm |
| Light Transmission: | 90 % |
| Gun Type: | Rifle |
Package Contents:
- Schmidt & Bender 5-20x50 PM II Ultra Short Rifle Scope, 34 mm Tube, First Focal Plane
